Free AutoCAD Tutorial Using Polar Tracking and PolarSnap

Download Sample Drawing



Download and open M_Roller.dwg



On the status bar, make sure the following settings are on:

clip_image002

1. Snap

2. Polar tracking

3. Object snap

Right-click Polar Tracking and select Settings.

clip_image004

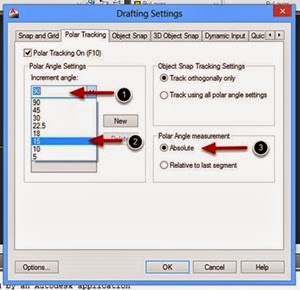

In the Drafting Settings dialog box, Polar Tracking tab:

clip_image006

Select 15 from the Increment Angle list.

Under Polar Angle Measurement, click Absolute.



On the Snap and Grid tab:

clip_image008

Click PolarSnap.

Enter 1 in the Polar Distance field.



On the Object Snap tab:

clip_image010

Make sure Endpoint and Node are selected.

Click OK.



To draw the line using polar tracking:

clip_image012

Activate the Line tool.

1. Specify the line's start point from the point object, using the Node object snap override.

2. Drag the cursor to the right until the polar tracking tooltip reads 25.00 < 0 degrees. Click the point.



Position the cursor so that the polar angle tooltip reads 15.00 < 45. Click the point.

clip_image014

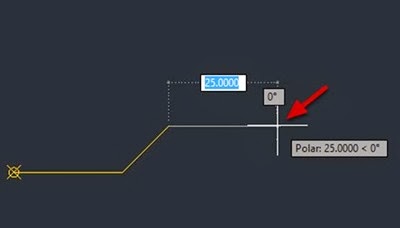

Position the cursor so that the polar angle tooltip reads 25.00 <0. Click the point.

clip_image016



Position the cursor so that the polar angle tooltip reads 15.00 <315. Click the point.

clip_image018



Position the cursor so that the polar angle tooltip reads 25.00 <0. Click the point.

clip_image020



Move the cursor upwards until the polar tracking cursor reads 70.00 < 90. Click the point.

clip_image022



Repeat these steps to draw the top half of the object which mirrors the bottom half, changing the Polar angle accordingly. Your final endpoint should be at the original start point.

clip_image023



Press ENTER to repeat the Line command. Select the endpoints indicated in the following image to draw the inner vertical lines. Press ENTER to end the Line command.

clip_image025

Save file and close.
